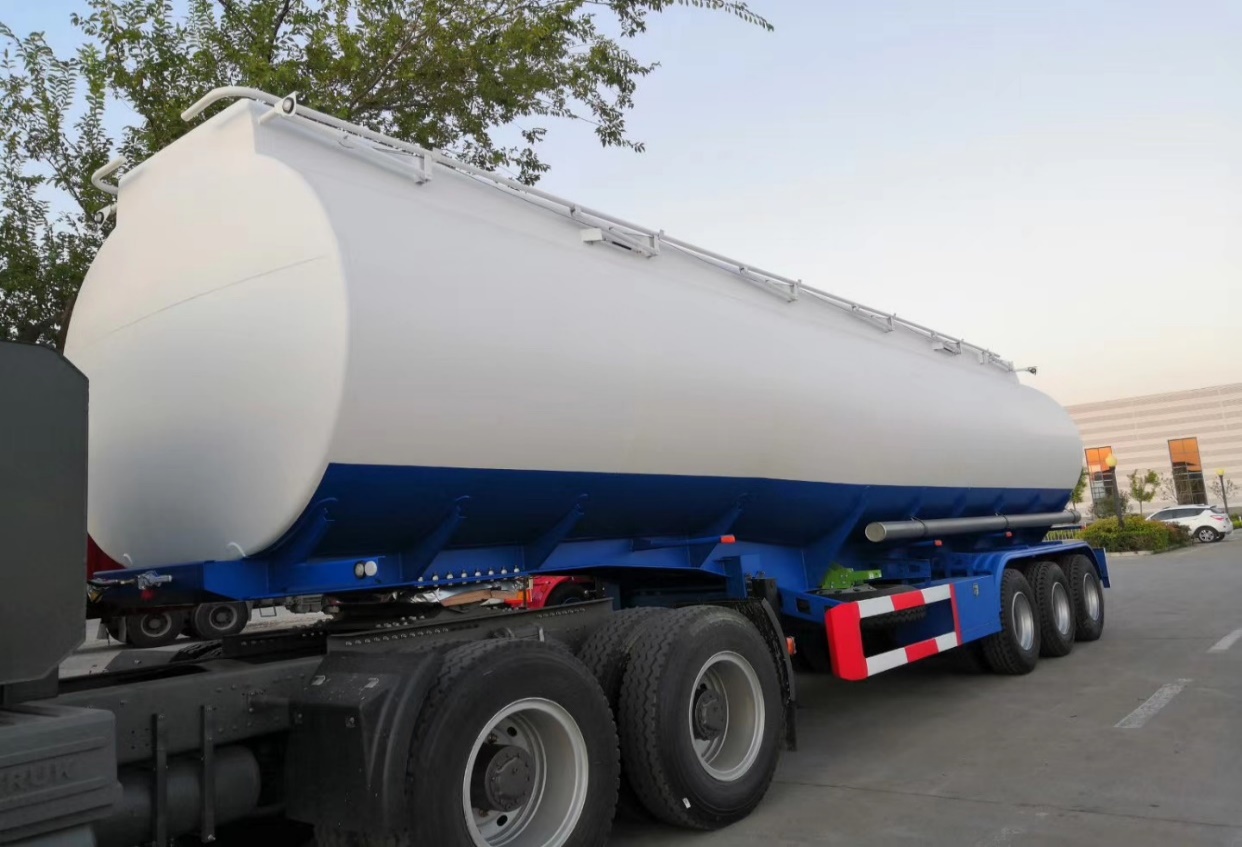

Fuel Tank Semi Trailer

Main   size

Overall   length

11000mm

Overall   width

2500mm

Overall   height

3700mm

Loading   capacity

40,500   liters

Tank   body

Round   type.

Material   of Q235B.

Body   thickness 5mm, end thickness 6mm.

Single   compartment with 2 aluminum manholes.

5   buffles, 4mm thickness.

2   sets of discharging valve sets.

2   sets of submarine valves installed.

Valves   designed in valve box.

Discharge   pipes enclosed with the trailer.

Chassis

Material   of high strength steel Q345B.

Main   beam height 500mm.

Welded   by automatic submerged-processes.

Multi   cross beams designed and installed.

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

3.5   inches available if wanted.

Axle

3   sets of 13T model brand new axles, with double tires formation.

Tire

Tire   sized 12R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00x22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system, three axles type.

6   sets of leaf springs installed.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on rear axle.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

ABS   system

ABS   system installed.

Others

Color   optional.

One   set of standard tools in tool box.

Two   sets of fire extinguishers.

Customization

Yes
