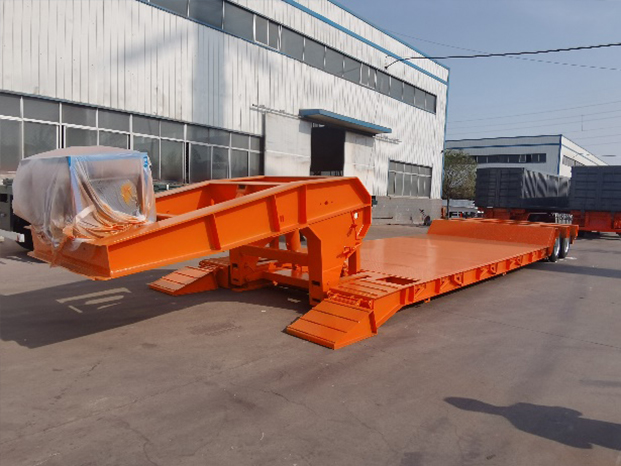

Front Loading LBT

Main   size

Overall   length

16000mm

Overall   width

3000mm

Overall   height

1750mm

Loading   capacity

60T.

Chassis

Main   beam

Material   of high strength steel Q345B.

Height   400mm.

Welded   by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Gooseneck

Hydraulic   detachable gooseneck;

Hydraulic   cylinder installed;

Manual   operation;

Diesel   engine installed to do power supply.

Loading   deck

Material:   Carbon steel Q345.

Height   of 610mm.

Length   of 7300mm.

Floor   thickness 3 mm.

Front   loading type.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   sets of FUWA 13T brand new axles, with double tires formation.

Tire

Tire   sized 295/60R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00X22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel leaf springs suspension system, three axles type.

Leaf   spring 16x90, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on third axle.

ABS system   installed.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

Others

Color   optional.

One   set of standard tools in tool box.

Customization

Yes
