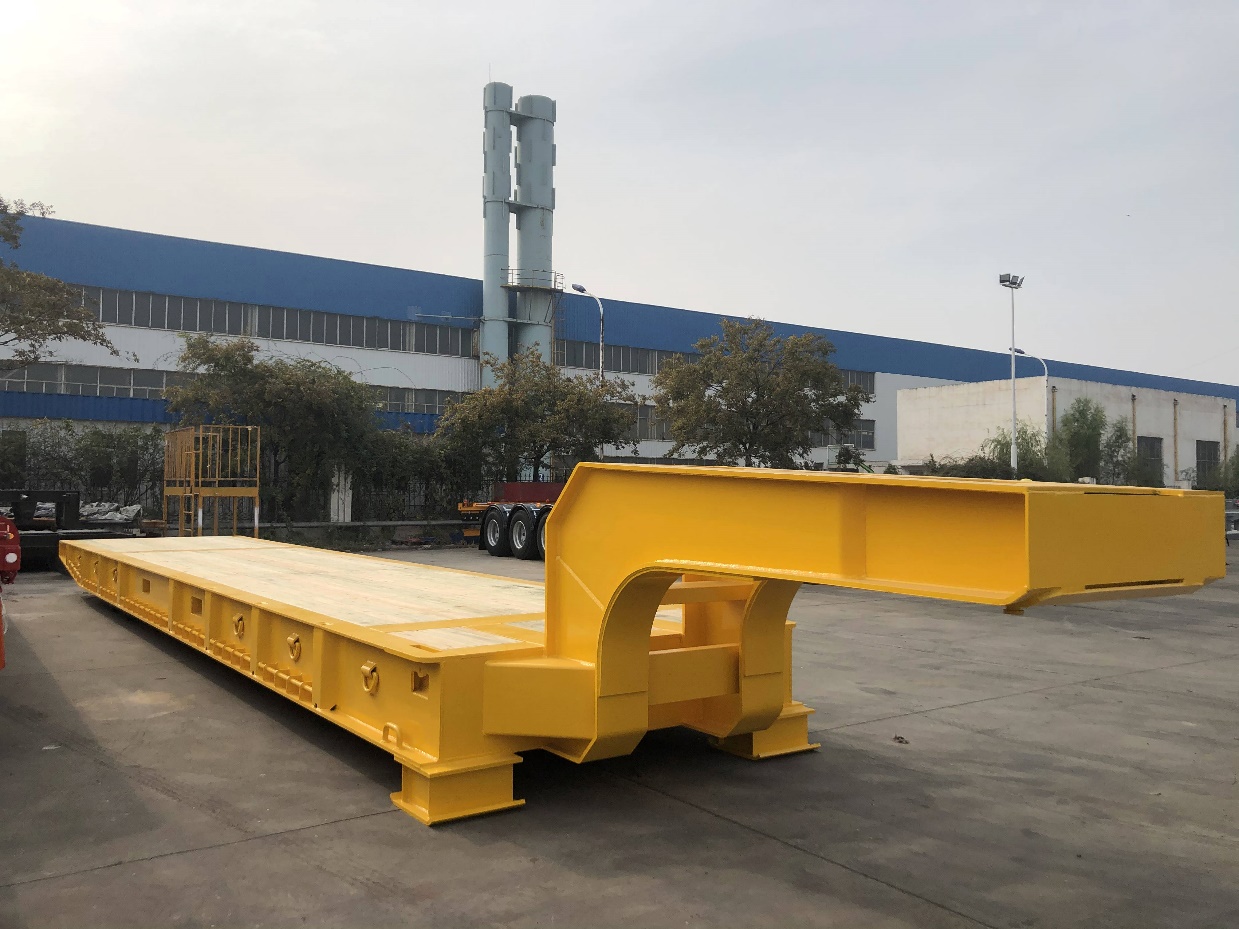

Roll Trailer

Model: GC9320TDP

Dimension:

Overall Length:   16,684 mm

Platform Length:   13,874 mm

Platform Width:   2,550 mm

Platform Height:   About 752mm @ unload

Ground clearance:   240mm

Axle spacer   (from front surface): 11,814 + 900 mm

Distance between   fork lift pockets: 2,050 mm

Tare Weight   (Tolerance ±3%):  Approximate 14,000 kg

Payload: 80,000kg

Material

☆ High strength   low alloy steel with 350 MPa yield strength is used for welded I-beam and   fabricated parts.

Properties of   steel material:

CIS:CHINAIndustrial Standards

Frame

☆ Material: High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and fabricated parts.

☆   Main Beams: 512mm deep x 200mm wide x 10mm   web welded I-section main beams with 16mm thick top flange and 20mm thick   bottom flange. 2 pieces reinforced bottom rail on each main beam.

☆   Gooseneck Cross Members:360mm deep ×300mm   wide ×10mm web welded I-section beam with 16mm thick flange.

☆ Running Gear   Cross Members: 275mm deep x 250mm wide welded box structure with 12mm web and   20mm thick flange.

☆ Cross Members:   8mm thick x90mm wide x180mm high channel type.

☆ Fork lift   pocket: Two reinforced box profile fork lift tunnels

Running Gear

☆   2 rock arms lowered box construction

☆   4 axles 140x140,φ100/80mm

☆   Taper roller bearings 30216 – 8 pieces,   32020 – 8 pieces

☆   8 steel reinforced solid rubber tires   22”x16”x16”

Decking

☆   50mm thickness wood floor.

Twist Lock

☆   12 collapsible twist locks to allow the   carriage of one 45′ ISO&one 40′ ISO or two 20′ ISO containers

Coating

☆   Shot blasted Sa 2.5

☆   As customer’s requirement.

☆   Marking as per customer’s recommendation.

Additional   Equipment

☆   Stanchion Pockets: 8 pieces 110mm x 55mm on   each side beam.

☆   Lashing points: Lashing rail along side   beam. 2+2 lashing points on rear panel.

Warranty

☆ Up to now, we   submit the general one year limited warranty of the terminal chassis only.   The warranty shall extend only to the original owner and is NON-TRANSFERABLE.
