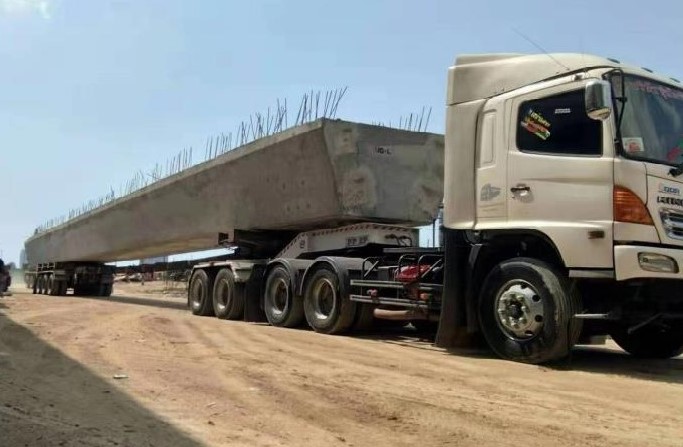

Dolly Axle Trailer

Main   size

Overall   length

5500mm

Overall   width

2500mm

Overall   height

1700mm

Chassis

Main   beam: height of 500mm, material of high strength steel Q345B.

Main   cross beam: material of high strength steel Q345B.

Welded   by automatic submerged-arc processes

Loading   deck

Material   of Q345B.

Adjustable   devices installed to firm the goods like girders.

Landing   gear

20T   model landing gear with static capacity of 50T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

2   sets of FUWA 13T brand new axles, with double tires formation.

Tire

Tire   sized 11R22.5, radial tubeless tires.

8   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25X22.5, steel wheel rim.

8   pcs of wheel rim per trailer.

Suspension

Mechanical   steel leaf springs suspension system, two axles type.

Leaf   spring 16x90, 10 pcs per set, 4 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers.

REAR   PART

Main   size

Overall   length

4500mm

Overall   width

2500mm

Overall   height

1700mm

Chassis

Main   beam: height of 500mm, material of high strength steel Q345B.

Main   cross beam: material of high strength steel Q345B.

Welded   by automatic submerged-arc processes

Loading   deck

Material   of Q345B.

Adjustable   devices installed to firm the goods like girders.

Axle

3   sets of FUWA 13T brand new axles, with double tires formation.

Tire

Tire   sized 11R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25X22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel leaf springs suspension system, three axles type.

Leaf   spring 16x90, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type brake chambers.

Customization

Yes
