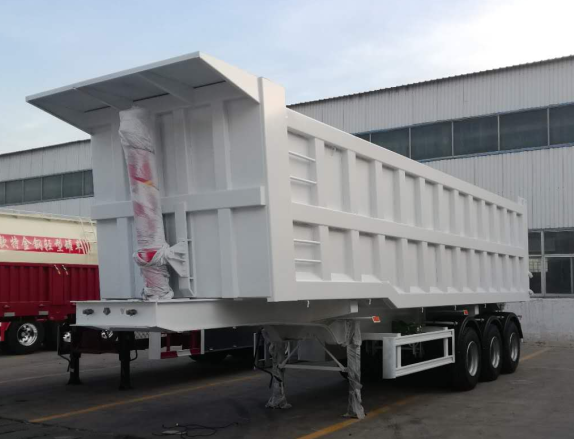

Dump Trailer

Main   size

Overall   length: 10000mm

Overall   width: 2500mm

Overall   height: 3700mm

Loading   capacity: 70Tons, volume of 45CBM

Chassis

Main   beam

Material   of high strength steel Q345B.

Welded   by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Dump   body

Inner   dimensions: 9500x2400x2000

Floor   thickness 6 mm, side wall thickness 5 mm.

Front   hydraulic cylinder 80T capacity model installed.

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate with 3.5inches available.

Axle

3   sets of 15T model axles, with double tires formation.

Axle   beam length 1800mm.

Tire

Tire   sized 315/80R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00x22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system, tri-axle type.

Leaf   spring specifications: 16x90 mm, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type brake chambers on each axle.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

ABS   system

ABS   system installed.

Others

Color   optional.

One   set of standard tools in tool box.

Customization

Yes

Note:   Each unit there will be one set of spare tire.
