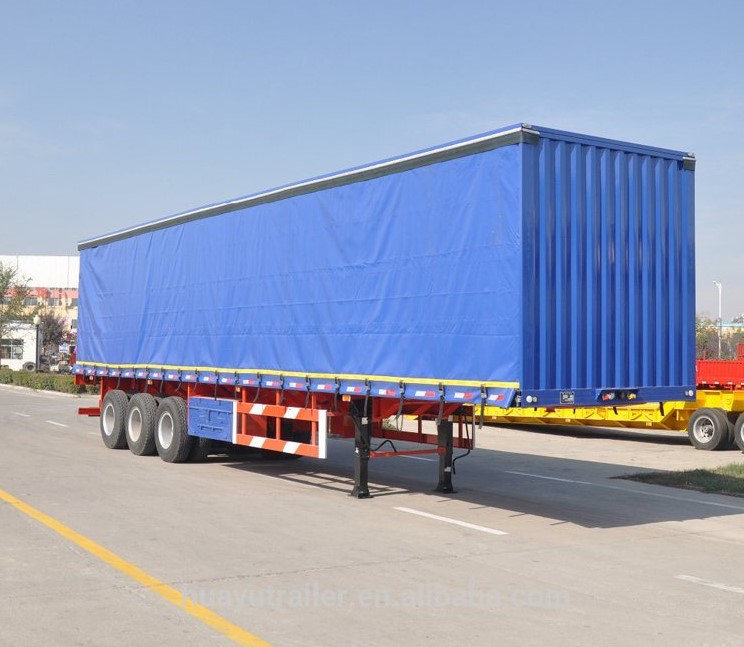

Curtain Side Trailer

Main   size

Overall   length

13600mm

Overall   width

2500mm

Overall   height

4500mm

Loading   capacity

Loading   capacity 50Tons.

Chassis

Main   beam

Material   of high strength steel Q345B.

Welded   by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Curtain   box body

Inside   height: 2900 mm.

Right   side curtain.

Side   curtain material PVC.

Multi   hooks installed.

Manual   operated.

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   sets of BPW brand new 13T model axles.

Tire

Tire   sized 11R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25x22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Air   suspension system installed.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on rear axle.

ABS system   installed on the trailer, Kemi brand.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

Others

Color   optional.

One   set of standard tools in tool box.

Customization

Yes
