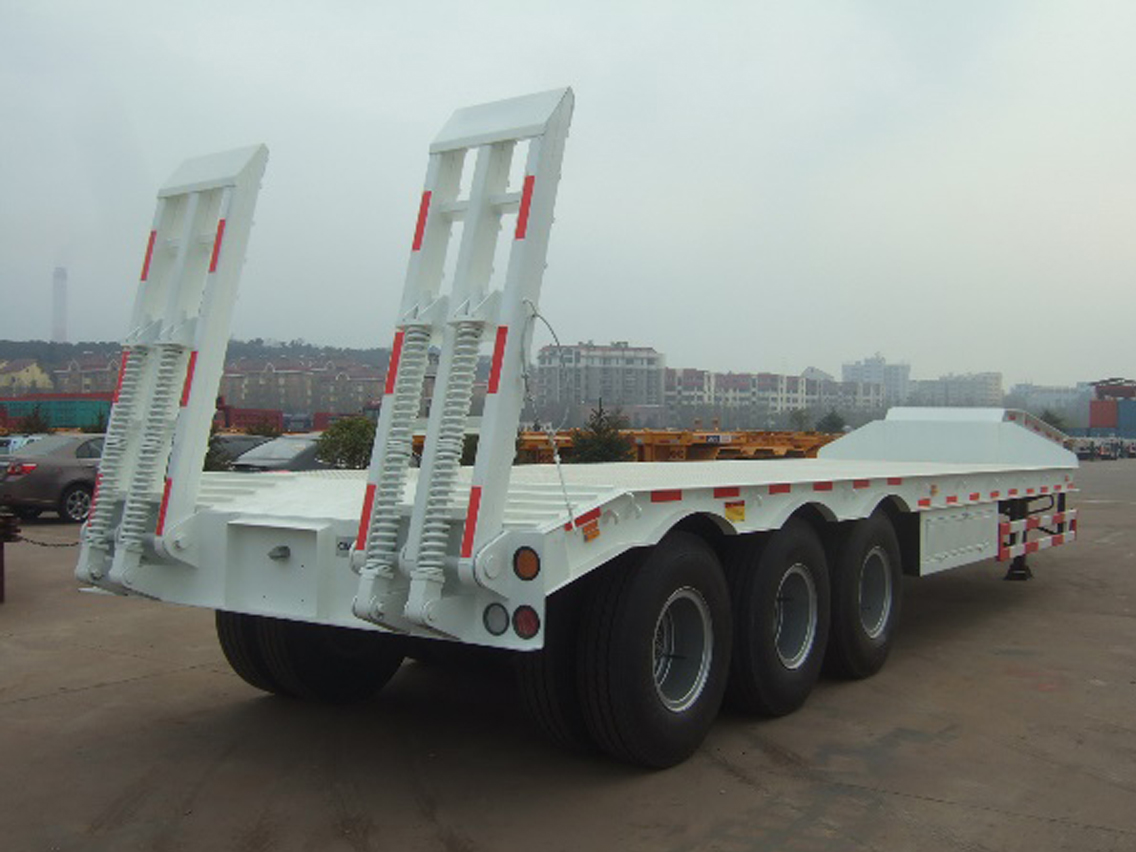

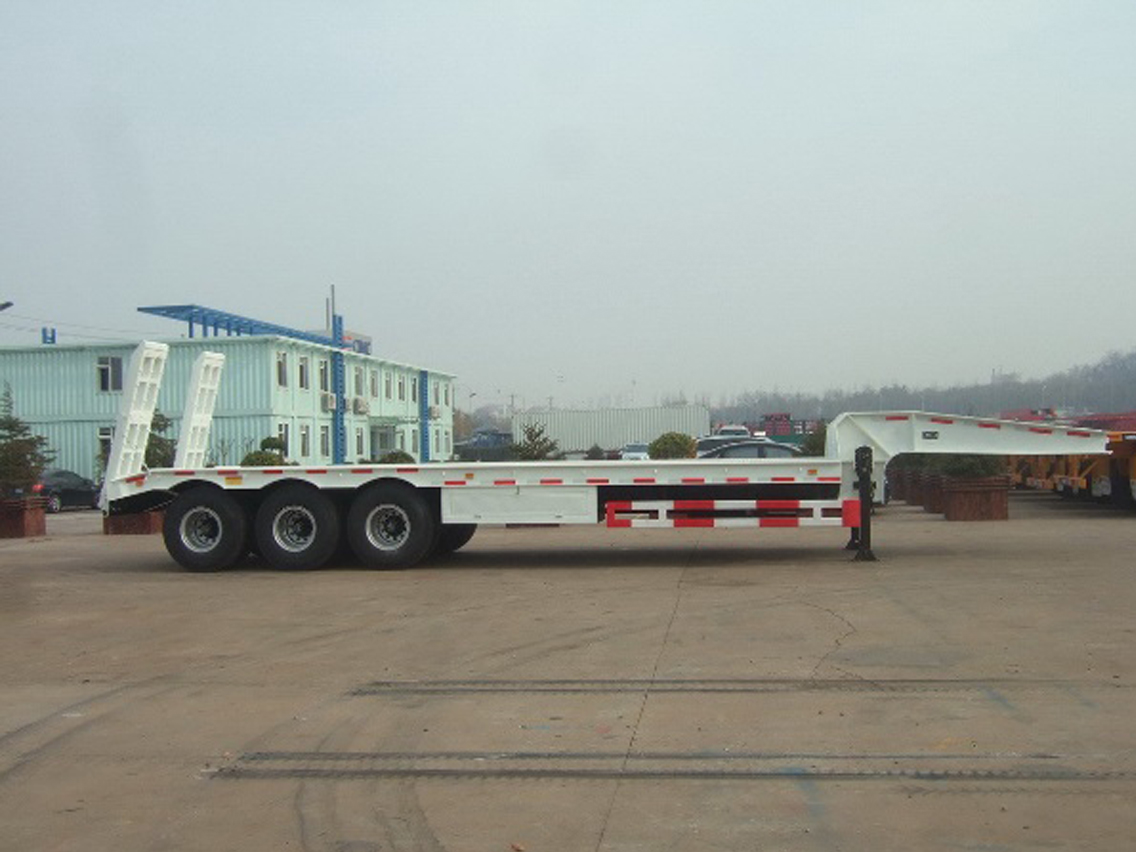

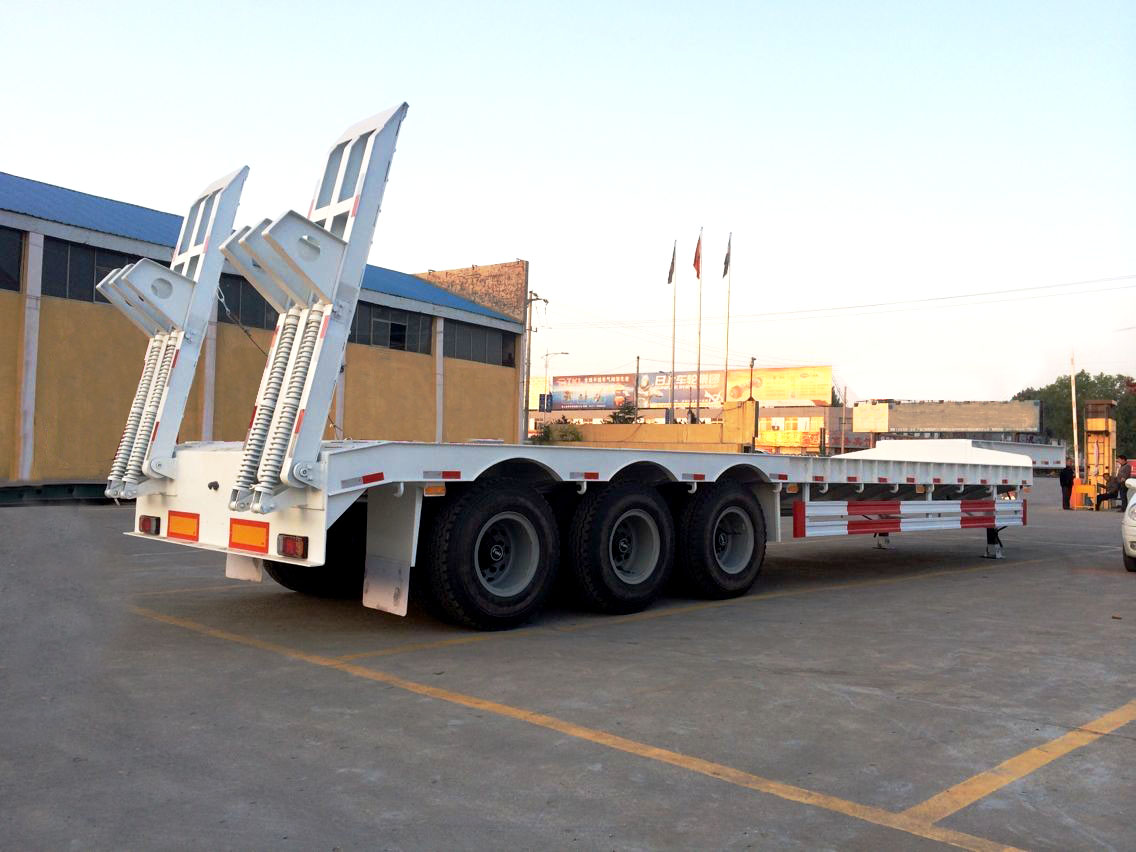

3 Axles Lowbed Trailer

Main   size

Overall   length

15500mm

Overall   width

3000mm

Overall   height

1750mm

Loading   capacity

45T.

Chassis

Main   beam

Material   of high strength steel Q345B.

Height   500mm.

Welded   by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Loading   deck

Material:   Carbon steel Q345.

Length   of 12000mm.

Floor   thickness 3 mm.

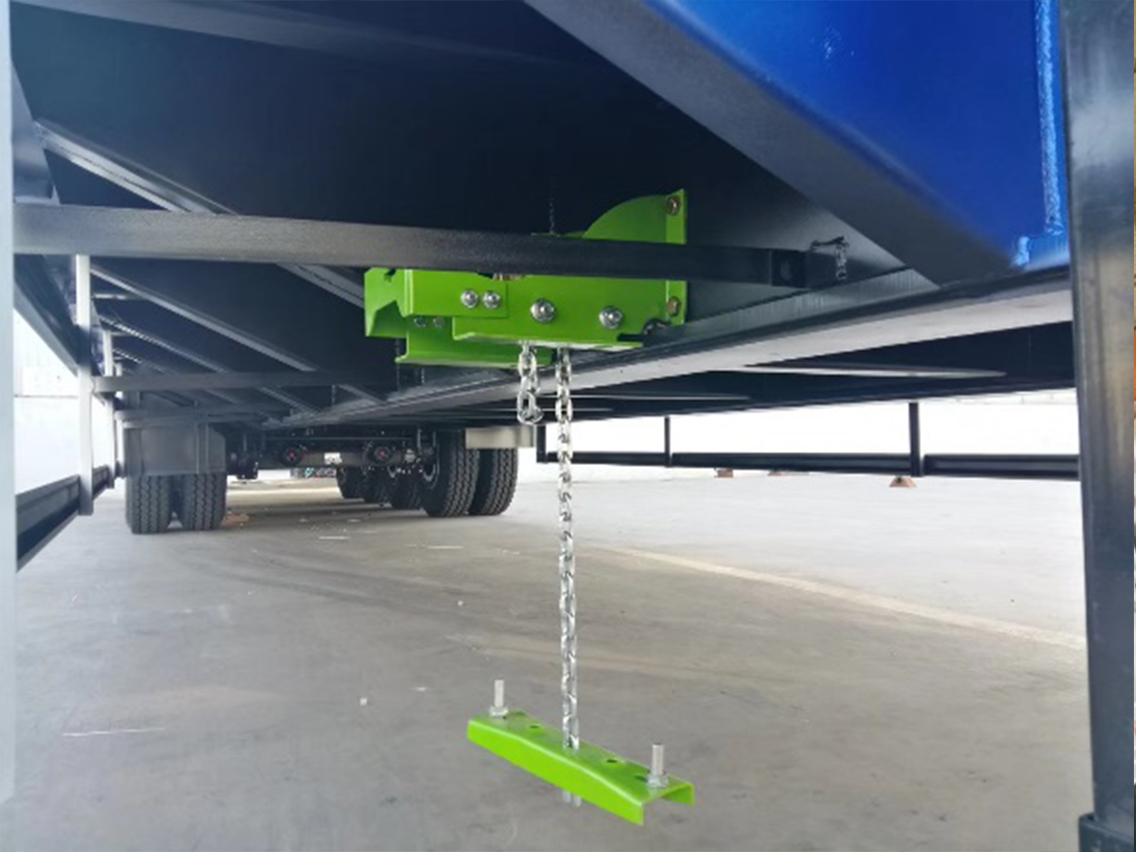

Landing   gear

JOST   20T model landing gear with static capacity of 50T.

Single   speed linked type, operated at one side.

King   pin

JOST   2 inches size, installed on the kingpin plate.

3.5 inches also   available.

Axle

3   sets of 13T brand new axles, with double tires formation.

Tire

Tire   sized 1200R20, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.5-20, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel leaf springs suspension system, three axles type.

Leaf   spring 16x90, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on third axle.

ABS system   installed.

Light   system

24v   light system.

LED   lights, including side, rear, turning.

Others

Color   optional.

One   set of spare tire carrier.

One   set of spare tires enclosed.

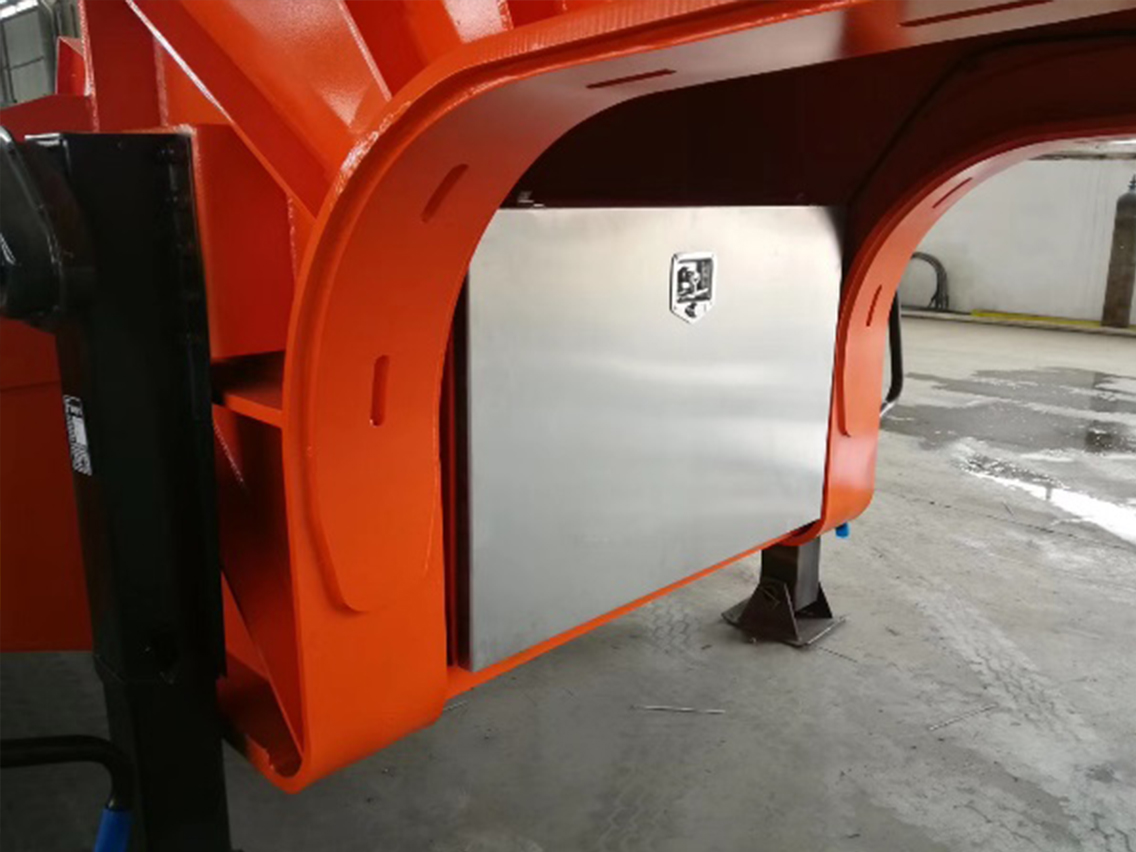

One   set of standard tools in tool box.

Customization

Yes
