2 Axles Lowbed Semi Trailer

Main   size

Overall   length: 10825mm

Overall   width: 2500mm

Overall   height: 1108mm

Loading   capacity: 30T.

Chassis

Material   of high strength steel Q345B.

Welded   by automatic submerged-processes.

Dolly   section

Towing   bar: length 1800mm, heavy duty ring (size 40mm, equalized to DIN 74054 ) to   be connected with front tractor.

Turntable   installed, to connect with the trailer.

Loading   deck

Length   of 5200mm.

Height   of 948mm.

Hardwood   installed on the deck and front gooseneck.

Landing   gear

20T   model landing gear with static capacity of 50T.

Single   speed linked type, operated at one side.

Axle

3   sets of 13T brand new axles, with double tires formation.

Tire

Tire   sized 235/75R17.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   6.00X17.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system.

6   sets of leaf springs installed.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on each   axle.

Light   system

12-24v   light system.

LED   lights, including side, rear, turning.

Rear   loading ladder

Hydraulic   loading ladder with cylinders installed.

Support   devices installed on ladder.

ABS   system

ABS   system installed, HN or Kemi brand.

Others

Color   optional.

One   set of standard tools in tool box.

Customization

Yes

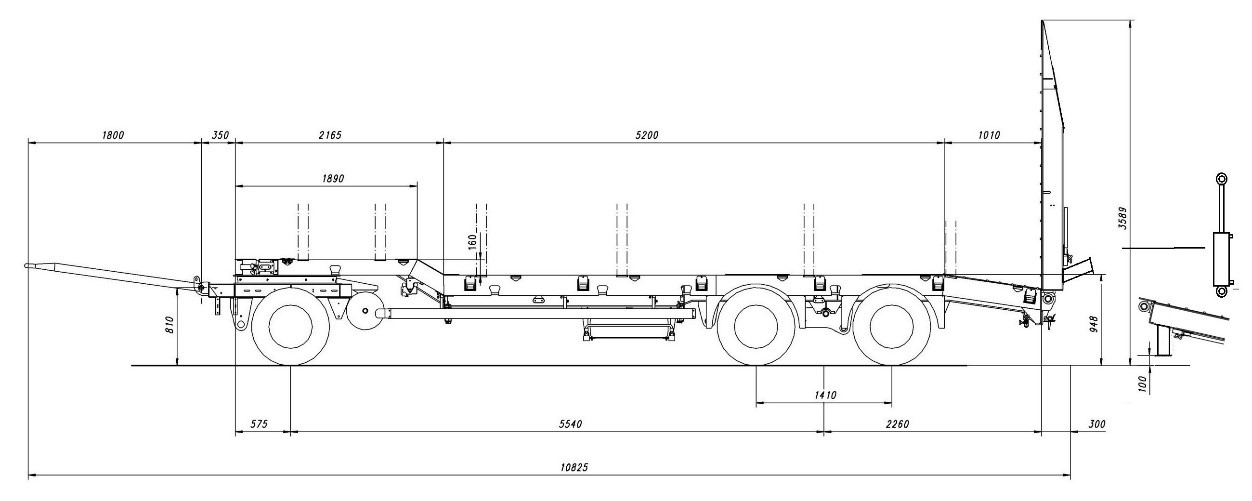

Referring   drawing
