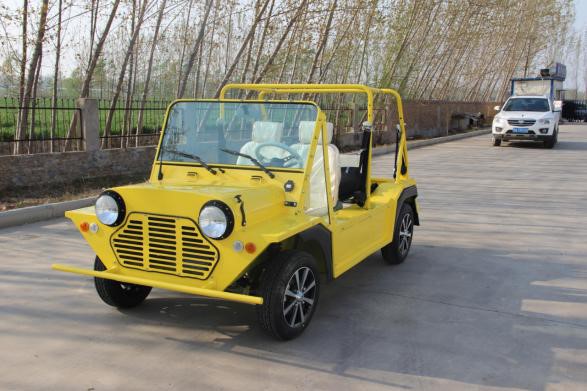

Gel battery moke

Measurement Parameter

Dimensions (LxWxH)

3290*1530*1500 mm

Wheelbase

2120 mm

Wheel   track front/rear

1280mm/1280mm

Ground clearance

180mm

Max climbing ability

20°

Curb weight

430Kg

Full   load

960Kg

Range

100Kms

Seats

4

Electric system and motor

Electric motor model

GLM 10 KW

Working voltage

96 V

Rated power

10 Kw

Peak power

22 Kw

Battery

12V*120AH*8 units Gel battery.

Max.speed

80 (Km/h)

Drive type

Front/Front

Chassis and other parameters

Steering system

Gear rack mechanical steering

Brake system

Front Disc/ Rear Drum（hydraulic   brake）

Suspension   system (F/R)

(Front)double wishbone independent   suspension, (rear) after trailing arm type independent suspension

Gearbox type

Automatic

Tire

155/65R13

Body color

RED, YELLOW, BLACK, BLUE,   WHITE, GREEN

Customization

Yes
