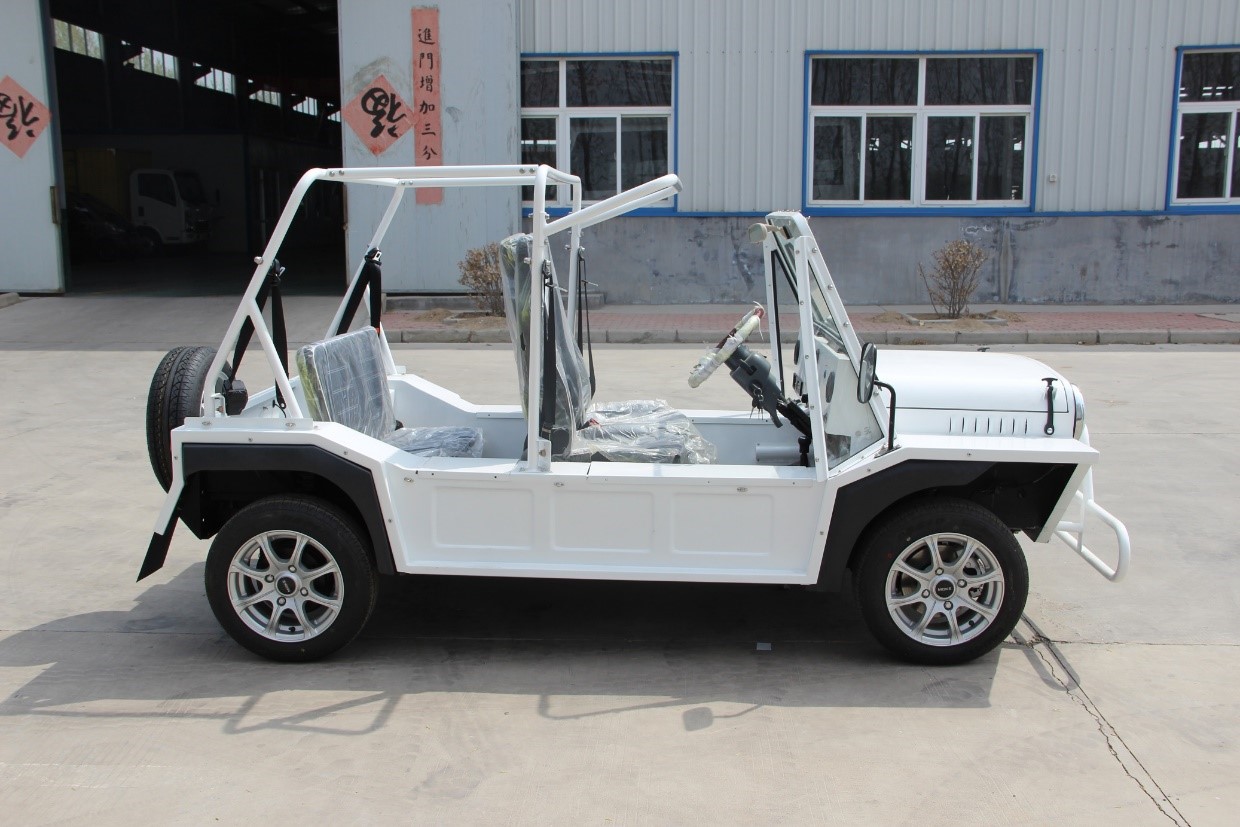

600cc G-Moke-Manual

Manufacturer

Chery

Type

600cc.Water-cooled. 8 valves. L2.

Bore*Stroke（mm）

72*72

Compression Ratio

9.8

Max.Power（kw/rpm）

25/5500

Max.Torque（Nm/rpm）

52/3000-3500

Fuel Supply System

MPFI

Max.Speed km/h

100

Starting

Electric

Min stable speed (rpm)

1000±50

Min fuel consumption（g/kw.h）

265

Ignition type

Inductance discharge type

Spark plug model

LDK7RTC

Distribution type

DOHC

Lubrication type

Pressure spray lubrication

Lubricating oil pump type

Rotor type oil pump

Lubricating oil label

10W-30 SAE

Lubricating oil capacity

1.5-2.2L

Clutch type

Dry-type monolithic clutch

Engine dimension (LxWxH)

404*418*563 mm

Engine weight

61kg

Transmission

Manual 5+1

Drive Train

Front engine, Front drive

Dimension

Overall   dimension (LxWxH)

3180*1450*1550 mm

Wheelbase

2050mm

Fuel Capacity

30L

Ground clearance

200mm

Min. turning radius

9 m

Dry Weight

560 kg

Chassis System

Material

Aluminum/carbon steel frames

Braking system（F/R)

Disc Brake (F/R) Drum Brake

Suspension System（F/R)

McPherson independent suspension

Tires (Front/Rear)

155/65R13

Body color

Red, white, blue, black, green, yellow,   orange, etc.

Customization

Yes
