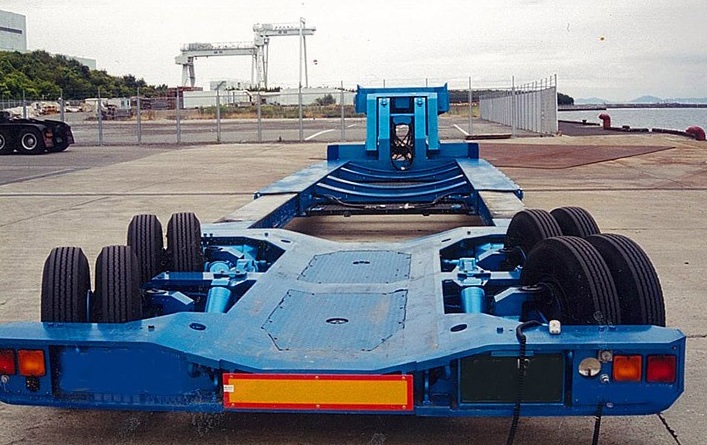

Tank Transport LBT

Overall   dimensions

Length:   12000mm(can be extended extra 4 meters long).

Width:   2700mm.

Height:   1650mm

Loading   capacity

40Tons

Chassis

Material   of high strength steel Q345B.

Welded   by automatic submerged-processes.

Loading   deck

Length   8500mm, width 2700mm

Material   of carbon steel Q345.

Designed   with sunken middle to firm the tank body.

Gooseneck

Hydraulic   detachable gooseneck.

Hydraulic   cylinder installed, with diesel engine.

Power   from diesel engine.

King   pin

2   inches size, installed on the kingpin plate.

Axle

2   sets of 13T brand new axles, with double tires formation.

Tire

Tire   sized 11R22.5, radial tubeless tires.

8   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25X22.5, steel wheel rim.

8   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system.

Leaf   spring 16x90, 10 pcs per set, 4 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles.

ABS   system installed.

Light   system

12-24v   light system, LED lights, including side, rear, turning.

Painting

Color   optional.

Polyurethane   paint & anti-rust primer & sand blasting.

Customization

Yes
