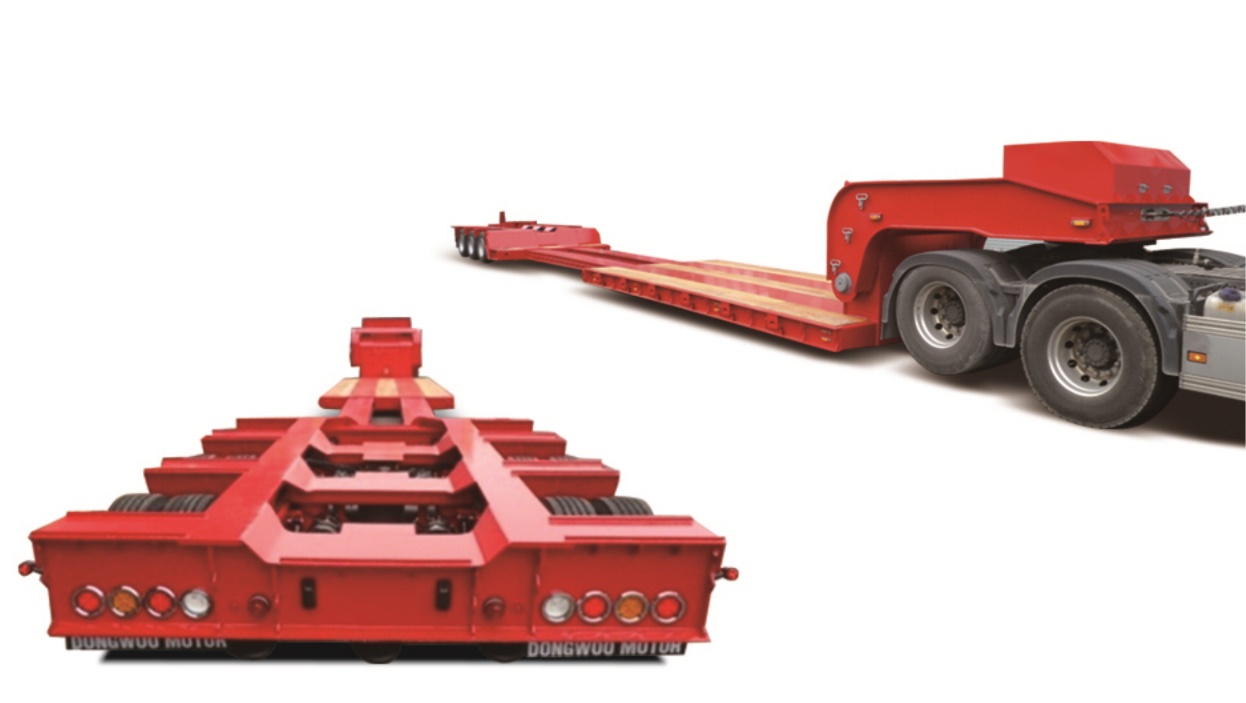

Extendable LBT

Overall   dimensions

13485x2745x2140   mm

17485x2745x2140   mm (when extended)

Loading   capacity

60Tons

Chassis

Main   beam

Material   of high strength steel Q345B.

Height   550mm.

Welded   by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Loading   deck

Length   6200mm, width 2700mm, height 600mm.

Material   of carbon steel Q345.

2   inches thickness hardwood like aspen covered, except the chassis part.

Loading   deck extendable at rear, 4 meters long of extendable part.

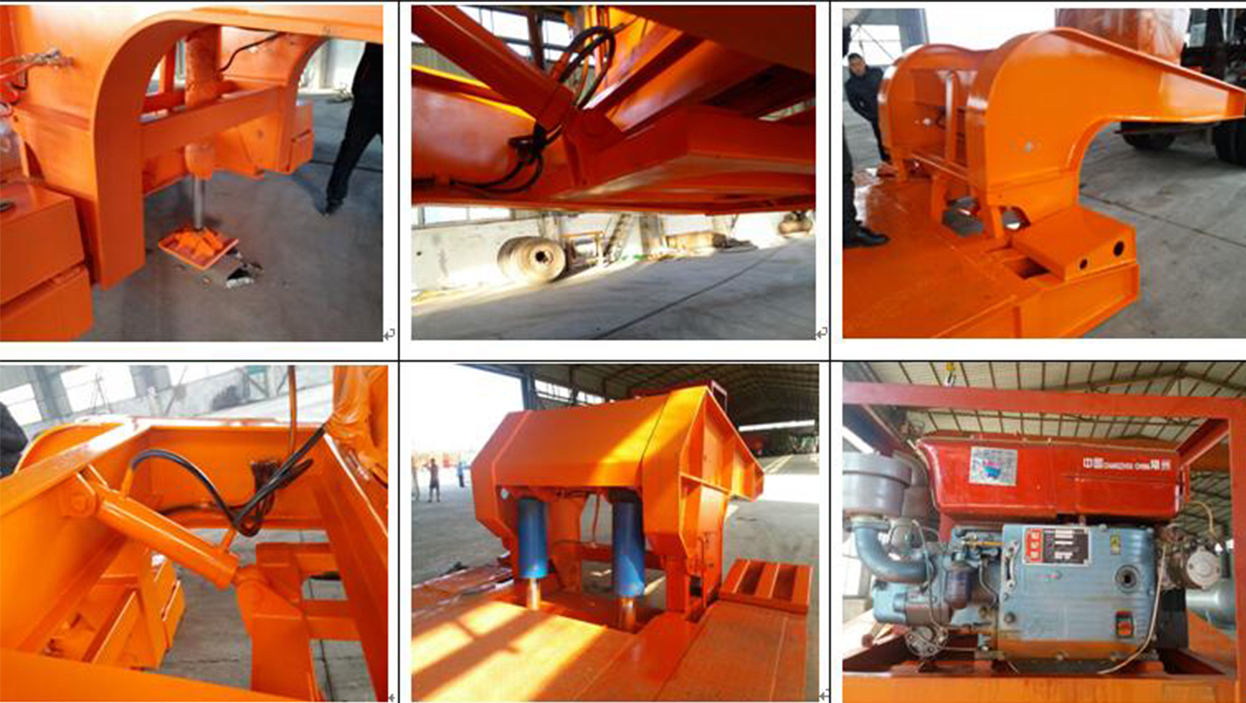

Gooseneck

Hydraulic   detachable gooseneck.

Hydraulic   cylinder installed, with diesel engine.

Power   from diesel engine.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   sets of FUWA 13T brand new axles, with double tires formation.

Tire

Tire   sized 11R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25X22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system, three axles type.

Leaf   spring 16x90, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on third axle.

ABS   system installed.

Light   system

12v/24v   light system, LED lights, including side, rear, turning.

Painting

Color   optional.

Polyurethane   paint & anti-rust primer & sand blasting.

Customization

Yes
