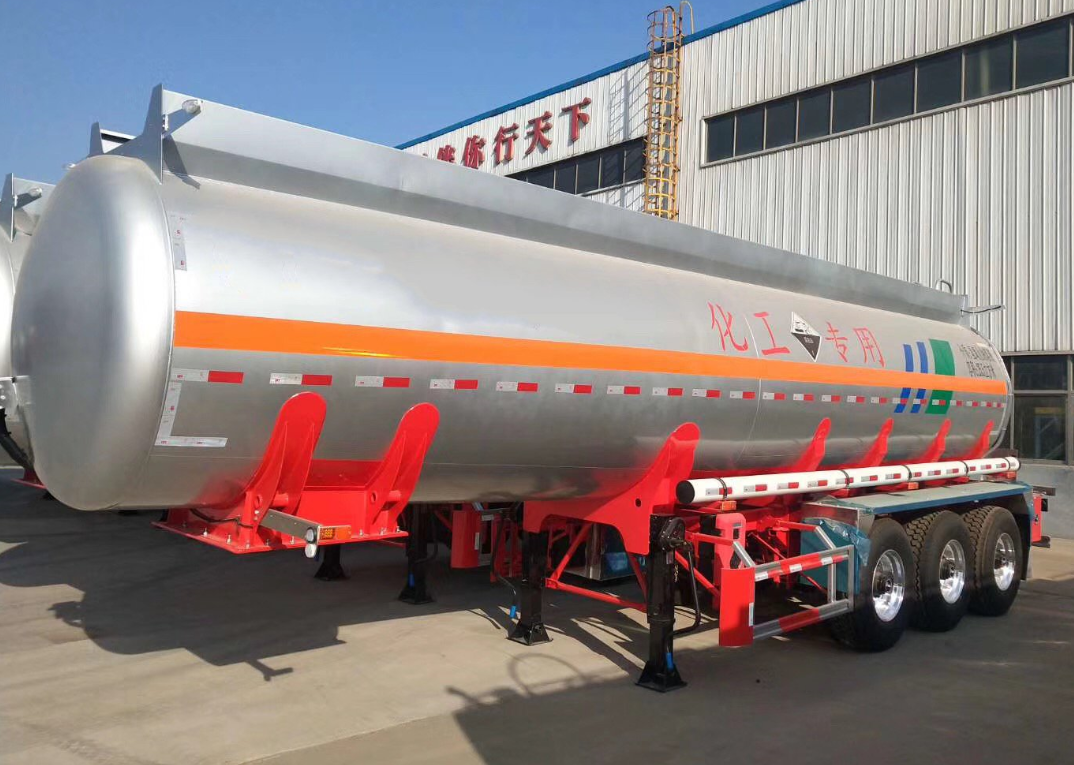

Chemical Tank Trailer

Main   size

Overall   length

11500mm

Overall   width

2500mm

Overall   height

3900mm

Loading   capacity

Effective   volume 40000 liters,

Loading   48Tones chemical liquid.

Tank   body

Material   of Q345B.

Body   thickness 5mm, end thickness 6mm.

The   Plastic lining anticorrosive coating made inside of tank body, thickness 17mm.

3   compartments with 3 manholes.

3   sets of discharging valve sets.

3   sets of submarine valves installed.

Valves   designed in valve box.

Chassis

Main   beam

Material   of high strength steel Q345B.

Height   500mm, welded by automatic submerged-processes.

Main   cross beam

Material   is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Landing   gear

20T   model landing gear with static capacity of 50T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   sets of FUWA brand new 13T model axles, with double tires formation.

Tire

Tire   sized 11R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   8.25x22.5, steel wheel rim.

12   pcs of wheel rim per trailer.

Suspension

Mechanical   steel leaf springs suspension system, three axles type.

Leaf spring 16x90, 10 pcs per set, 6 sets per trailer.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front   two axles, single chamber on rear axle.

ABS system   installed, Kemi brand.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

Others

Color   optional.

One   set of standard tools in tool box.

Two   sets of fire extinguishers.

Pump installed to load the chemical liquids, speed 50cbm/h.

One   set of spare tire carrier.

Customization

Yes
