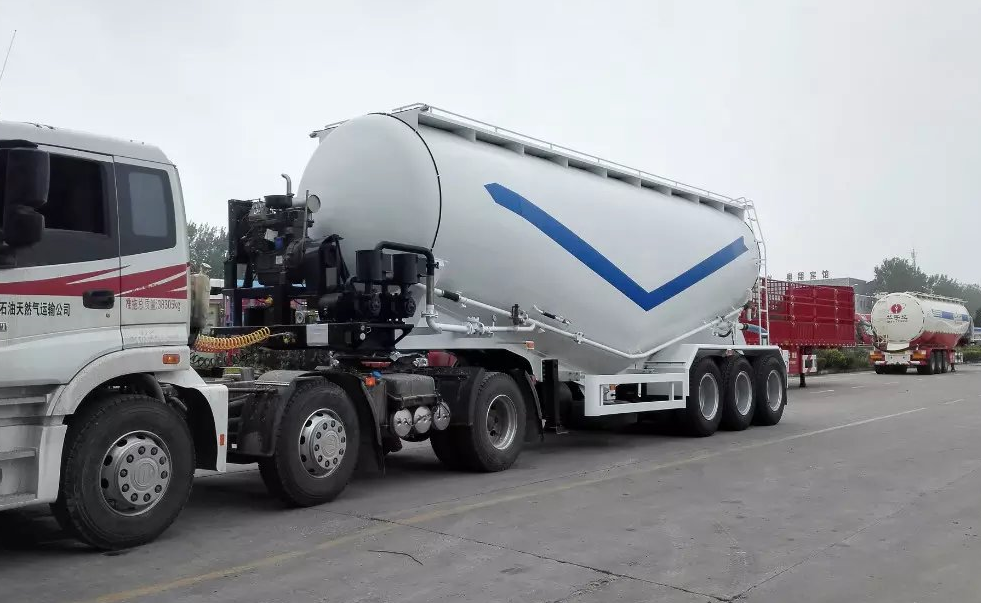

Bulk Cement Tank Trailer

Main   size

Overall   length

11900mm

Overall   width

2500mm

Overall   height

4000mm

Loading   capacity

40,000   liters

Tank   body

Material   of Q235B.

Body   thickness 5mm, V shape.

End   thickness 6mm, ball shape.

Single   compartment.

3   sets of manholes DN500.

Discharge   valve: 4〞discharge valve.

Outlet   discharge pipe: One piece of rubber hose, length 6m.

Chassis

Main   beam: Material of high strength steel Q345B.

Height   500mm, welded by automatic submerged-processes.

Main   cross beam: Material is high strength steel Q345B.

Welded   by automatic submerged-arc processes

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   sets of FUWA brand new 13T model axles, with double tires formation.

Tire

Sized   12R22.5, radial tubeless tires.

12   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00x22.5, steel wheel rim.

12   pcs of wheel rims per trailer.

Suspension

Mechanical   steel suspensions, with leaf springs 10 pcs per set.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on front two   axles, single chamber on rear axle.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

ABS   system

ABS   system installed.

Others

Diesel   engine and air compressor installed.

Color   optional.

One   set of standard tools in tool box.

One   set of spare tire carrier.

Customization

Yes
