150Ton LBT

Main   size

Overall   length

14000mm

Overall   width

3000mm

Overall   height

1750mm

Loading   capacity

150T.

Chassis

Main   beam:

Material   of high strength steel Q345B.

Height   600mm.

Welded   by automatic submerged-processes.

Double   middle web flange.

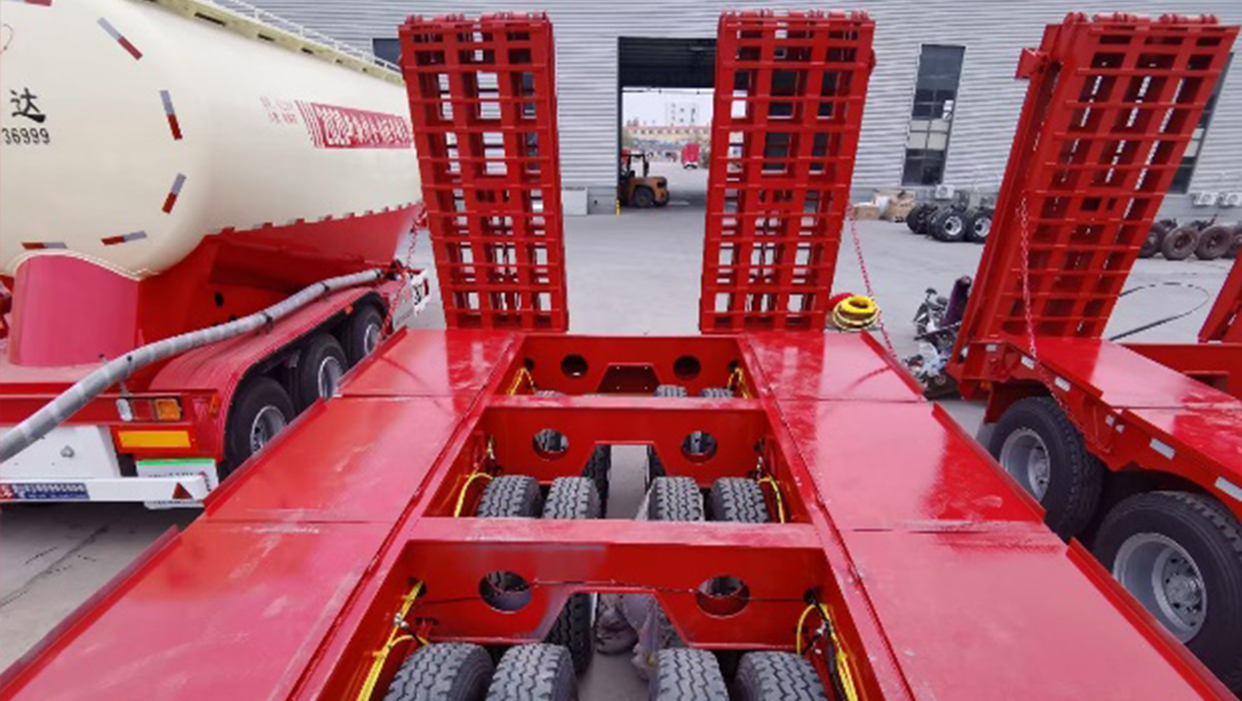

Loading   deck

Material:   Carbon steel Q345.

Length   of 9000mm.

Height   of 1300mm.

Floor   thickness 5 mm.

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

3   lines 6 axles designed, 20T model brand new axles.

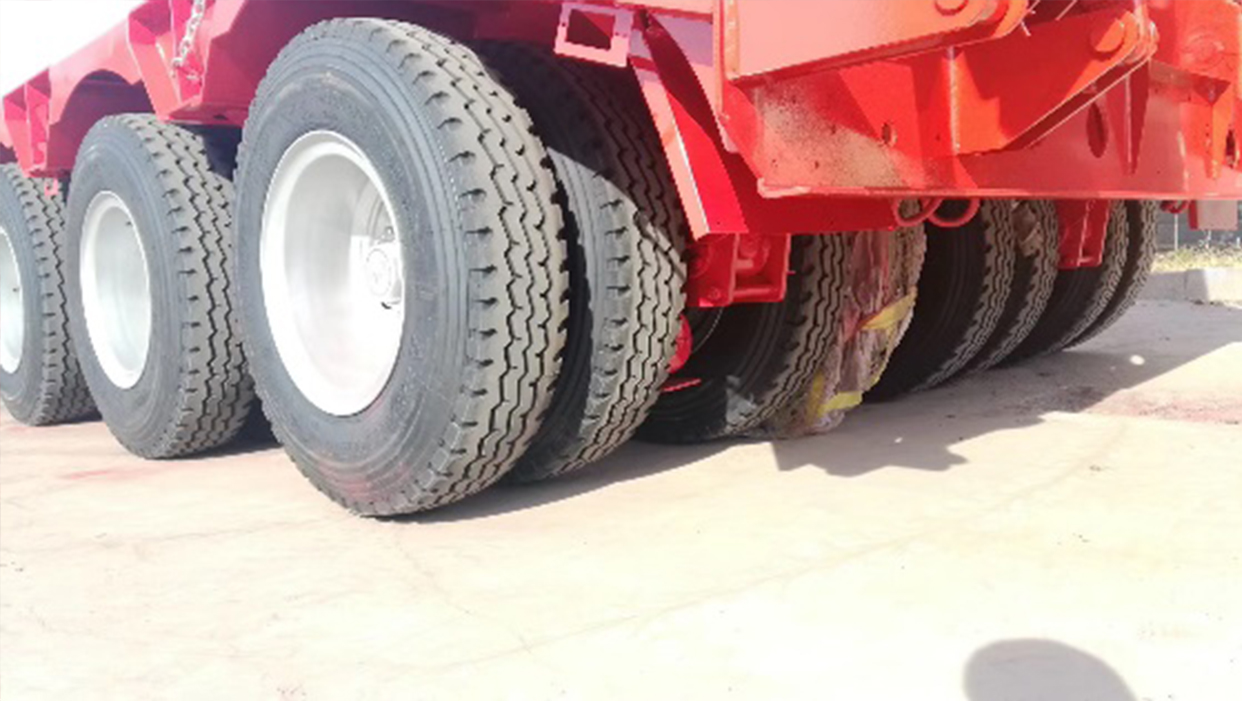

Tire

Tire   sized 12R22.5, radial tubeless tires.

24   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00X22.5, steel wheel rim.

24   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system with leaf springs sets.

12   sets of leaf springs installed.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on each   axle.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

ABS   system

ABS   system installed, HN or Kemi brand.

Others

Color   optional.

Ordinary   spring rear loading ladder.

One   set of standard tools in tool box.

Customization

Yes
