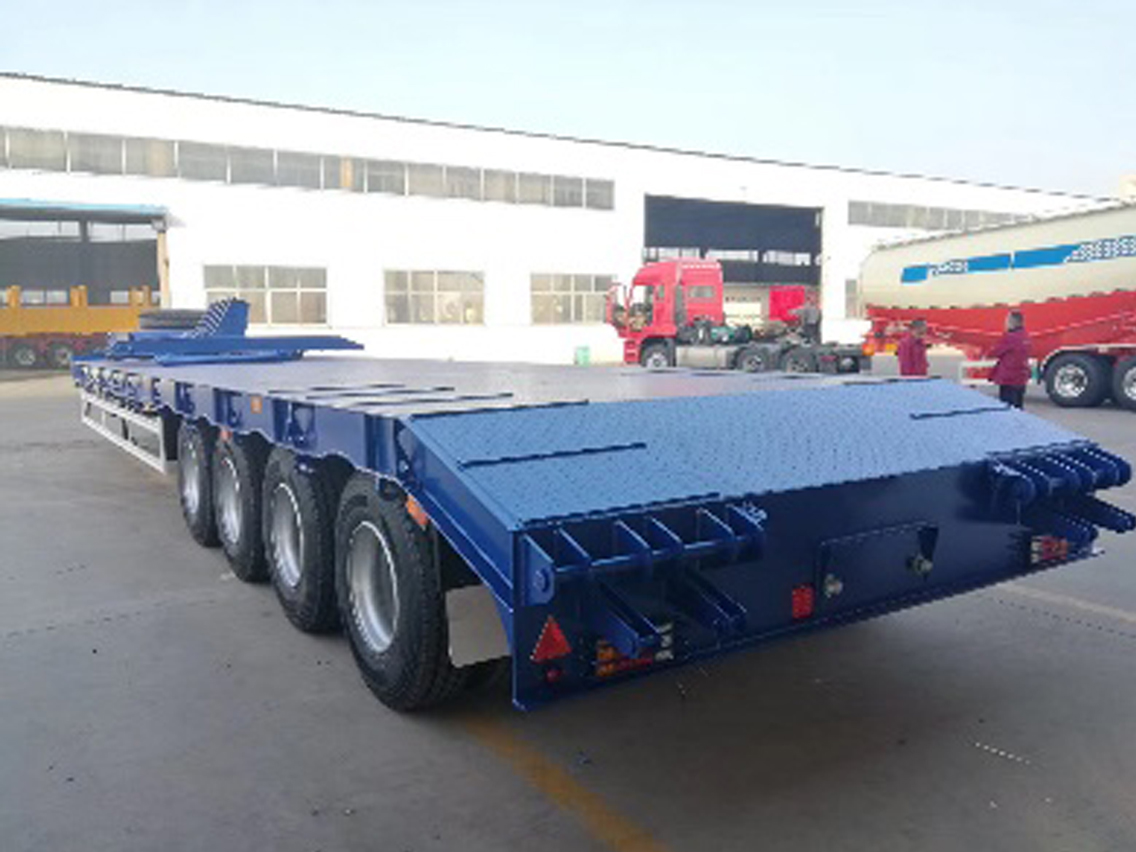

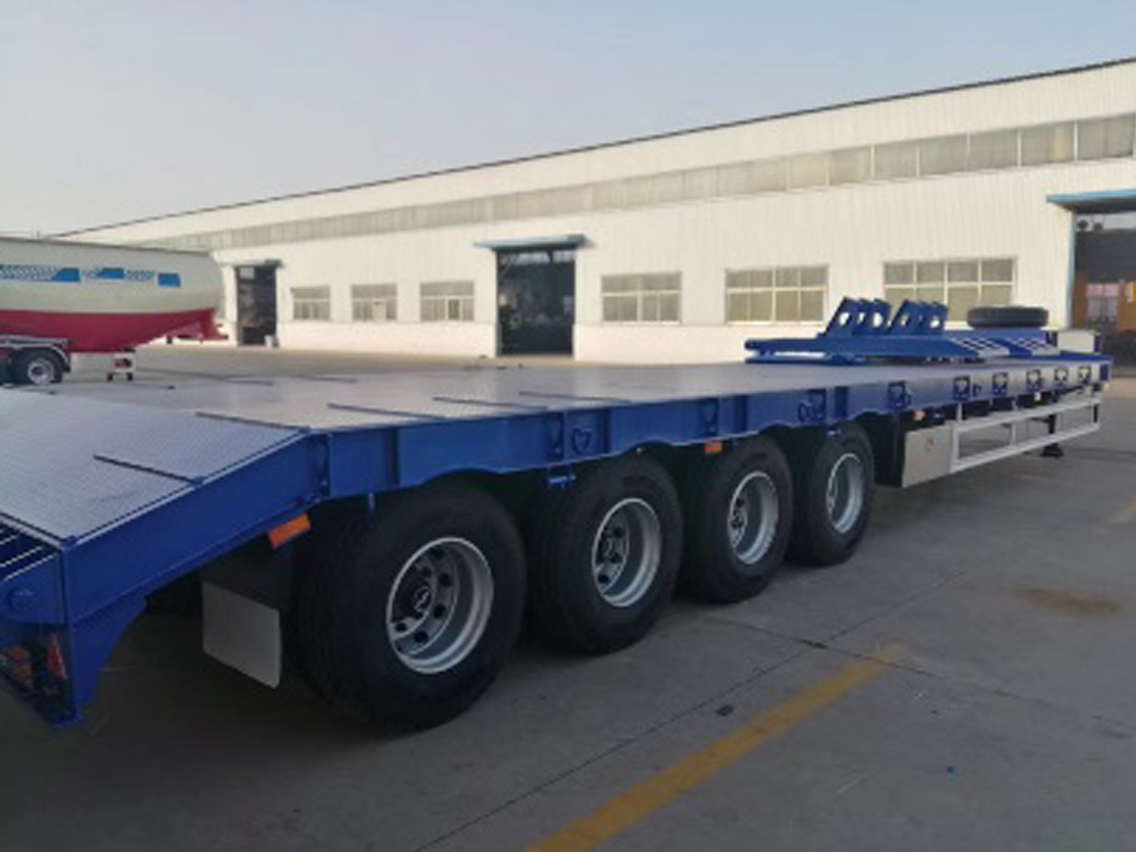

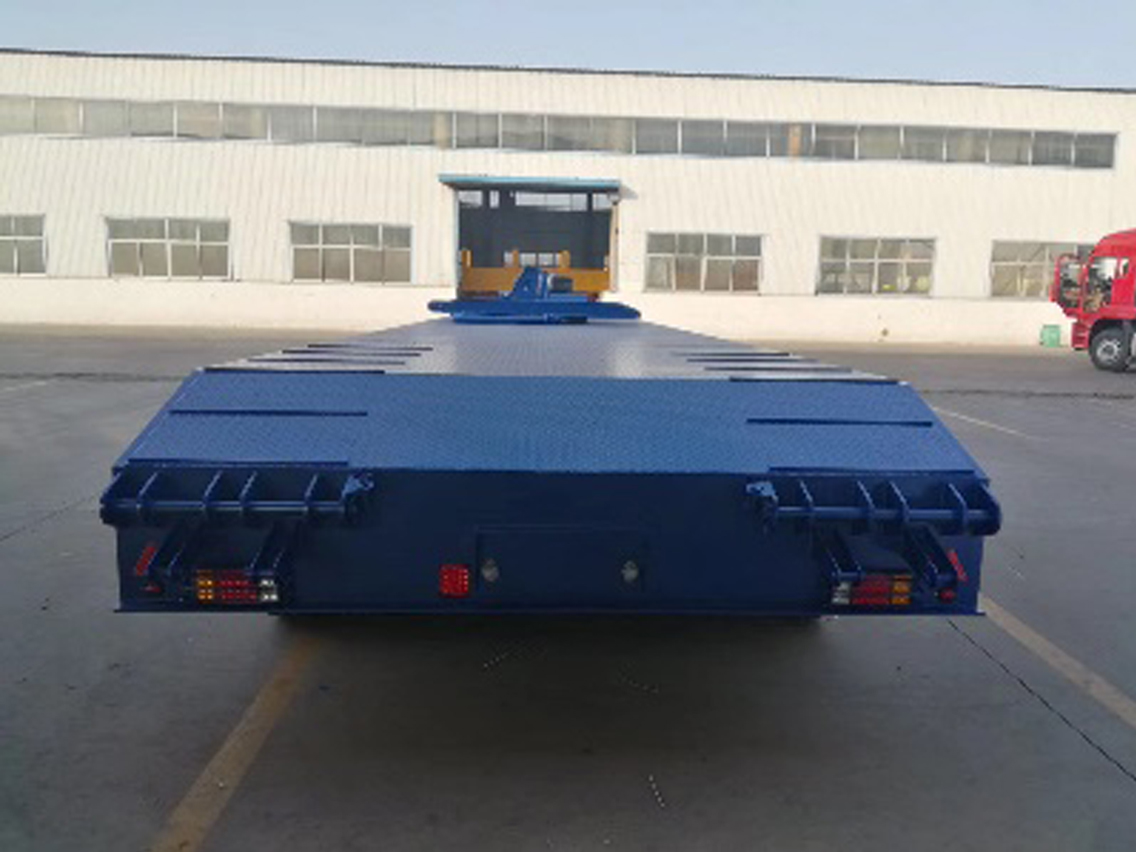

4 Axles Lowbed Semi Trailer

Overall   width

3400mm

Overall   height

1750mm

Loading   capacity

80T.

Chassis

Material   of high strength steel T700.

Height   520mm.

Welded   by automatic submerged-processes.

Multi   strong cross beam installed.

Loading   deck

Material:   Carbon steel Q345.

Length   of 12000mm.

Height   of 1100mm.

Floor   thickness 5 mm.

Landing   gear

28T   model landing gear with static capacity of 80T.

Single   speed linked type, operated at one side.

King   pin

2   inches size, installed on the kingpin plate.

Axle

4   sets of 15T model brand new axles, with double tires formation.

Tire

Tire   sized 295/60R22.5, radial tubeless tires.

16   sets of tires assembled with wheel rim per trailer.

Wheel   rim

Sized   9.00X22.5, steel wheel rim.

16   pcs of wheel rim per trailer.

Suspension

Mechanical   steel suspension system, four axles type.

8   sets of leaf springs installed.

Brake   system

Dual   line air drum brake system with T30/30 type double brake chambers on each   axle.

Light   system

12v/24v   light system.

LED   lights, including side, rear, turning.

ABS   system

ABS   system installed, HN or Kemi brand.

Others

Color   optional.

One   set of standard tools in tool box.

Customization

Yes
